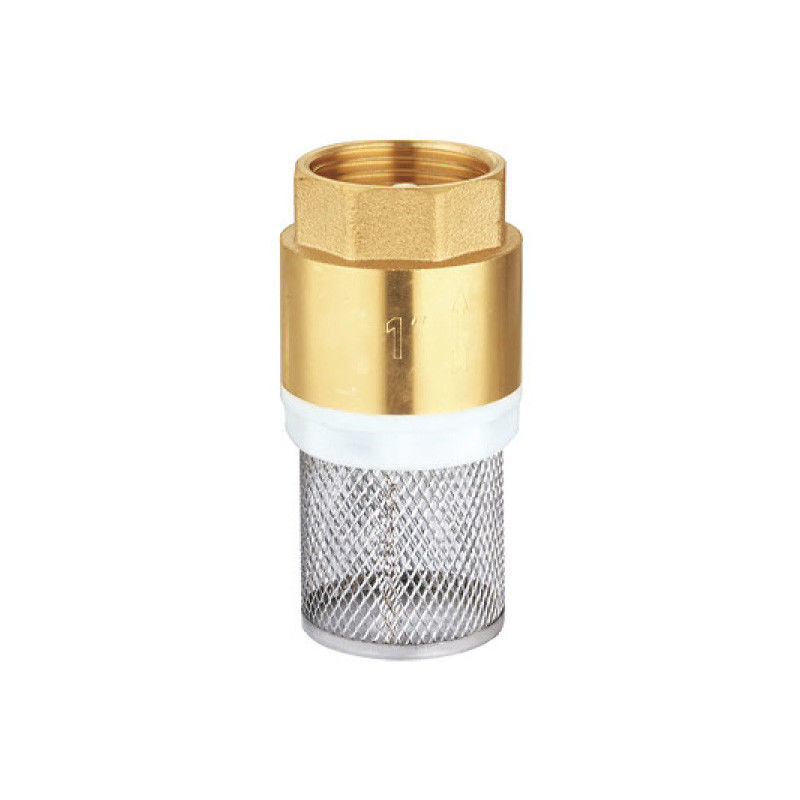

Katup Periksa Kuningan Air Tempa Berulir Berlapis Nikel CV5004
Detail produk:
| Tempat asal: | TaiZhou ZheJiang |
| Nama merek: | JM |
| Nomor model: | CV5004 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 3000PCS |
|---|---|
| Waktu pengiriman: | 30-40 |
|
Informasi Detail |
|||
| Nama: | Katup Periksa Kuningan | Material: | Kuningan |
|---|---|---|---|
| Media: | Air | Tekanan: | Tekanan Sedang |
| Struktur: | Periksa, Kontrol, Bola | Sedang mengemas: | KARTON/PALLET |
| Cahaya Tinggi: | Katup Cek Kuningan Tempa,Katup Cek Kuningan Berulir,Katup Cek Air Berlapis Nikel |
||
Deskripsi Produk
Brass Check Valve CV5004 Nominal Pressure:max25bar Temperature:-10-110
Spesifikasi
-
Boby kuningan tempa
-
Ledakan pasir dan berlapis nikel
-
Tekanan Nominal: Max.16bar
-
Suhu: -10°C~110°C
-
Berulir ISO228/1
-
100% kebocoran diuji
Ukuran
| UKURAN | A | C |
| 1/2" | 66 | 31.9 |
| 3/4" | 78 | 38.9 |
| 1" | 85.5 | 42 |
| 1 1/4" | 101 | 57.6 |
| 1 1/2" | 118.5 | 64.5 |
| 2" | 128 | 78.7 |
| 2 1/2" | 154.4 | 97 |
| 3" | 171 | 111 |
| 4" | 184.5 | 140.4 |
kemasan
| UKURAN | Berat (g) | Kotak Dalam (mm) | Karton (mm) |
Qty per kotak batin |
Qty per karton |
| 1/2" | 59 | 21,5×13,5×7,5 | 40×22×28.5 | 26 | 260 |
| 3/4" | 90 | 21,5×13,5×7,5 | 40×22×28.5 | 15 | 150 |
| 1" | 119 | 22×14×8.5 | 44×23.5×29 | 12 | 120 |
| 1 1/4" | 235 | 30,5×10,7×10,7 | 56×32×23.5 | 9 | 90 |
| 1 1/2" | 302 | 21,5×13,5×7,5 | 42×22.5×39 | 3 | 45 |
| 2" | 462 | 22×14×8.5 | 22×23.5×29 | 3 | 30 |
| 2 1/2" | 950 | 33×23×12 | 47,5×34×36,5 | 4 | 20 |
| 3" | 1224 | 35×20×14.5 | 40×35×29 | 3 | 12 |
|
4” |
1916 | 35×20×14.5 | 40×35×29 | 2 | 8 |
